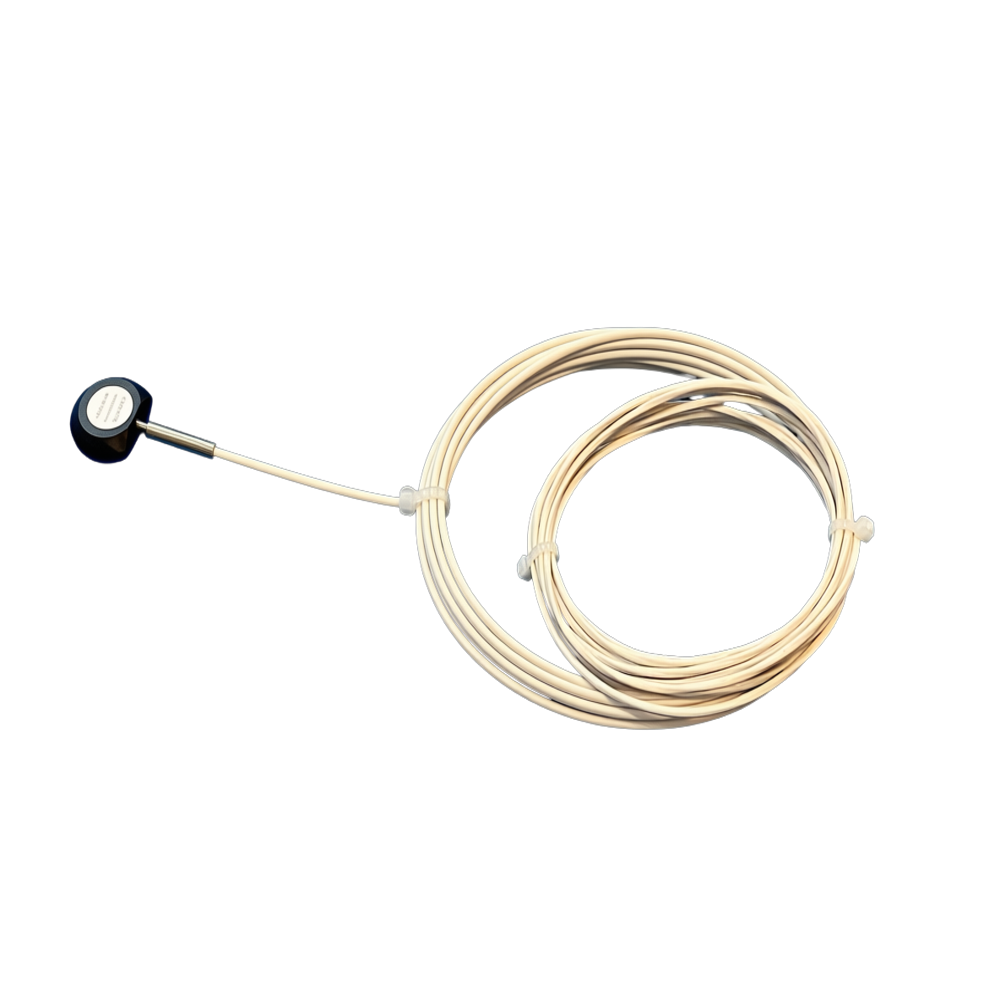

RC22M Reference Cell Sensor

Price 72500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

RC22M Reference Cell Sensor Specification

Interface
2-wire Analog

Housing Material
Anodized Aluminum

Wireless
No

Features
Calibrated to global reference (IEC 60904-2), Field replaceable, Rugged design

Sensitivity
1-2 V/(W/m2)

Cable Length
5 m Meter (m)

Application
Photovoltaic System Monitoring, Irradiance Measurement

IP Rating
IP65

Measurement Range
0-1500 W/m2

Signal Type
Analog

Ingress Protection
IP65

Power Consumption
Passive/No external power required Volt-Ampere (VA)

Response Time
< 5 ms Seconds

Operating Temperature
-40C to 85C Planck temperature ()

Spectral Range
300-1200 nm

Mounting Thread
1/4-20 UNC

Sensor Type
Monocrystalline Silicon Reference Cell

Mounting Type
Panel Mount, Threaded

Product Type
Reference Cell Sensor

Material
Monocrystalline Silicon

Input
Solar Irradiance

Output
Analog Voltage

Function
Measures reference solar irradiance

Usage
PV System Performance Monitoring

Accuracy
2% (relative to NREL-calibrated reference) gm

Resolution
1 W/m2

Voltage
0-200 mV (typical analog output) Volt (v)

Weight
Approx. 400 g Grams (g)

Typical Applications
PV system performance ratio assessment, test laboratories, outdoor solar test arrays

Calibration
ISO/IEC 17025 traceable

Cover
Low-iron tempered glass window

Environmental Compliance
RoHS Compliant

Dimensions
112 mm x 62 mm x 22 mm (L x W x H)

Connector Type
Pre-wired flying leads

Compatible Modules
IEC 60904-2-compliant PV modules

Storage Temperature
-40C to 85C

RC22M Reference Cell Sensor Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
4 Week

RC22M Reference Cell Sensor About

Overview

The RC22M Reference Cell and Accessories system is a comprehensive irradiance, temperature, and wind measurement solution designed for commercial and industrial PV arrays. Key features of RC22M, main part number 810323-01, include:

Measures Irradiance, Wind, and Temperature: Measures irradiance (0 to 1500 W/m), wind speed, back-of-module temperature, and ambient temperature.
Accurate Across a Wide Range: Offers high accuracy across a wide irradiance range with auto-ranging, and calibrations at both 1000 W/m (STC) and 135 W/m (BSTC).
Glass-to-Edge Design: Ensures water roll-off, reducing soiling for more accurate measurements.
Modbus RTU Communication: Digital communication via RS485, making it easy to integrate into existing systems.

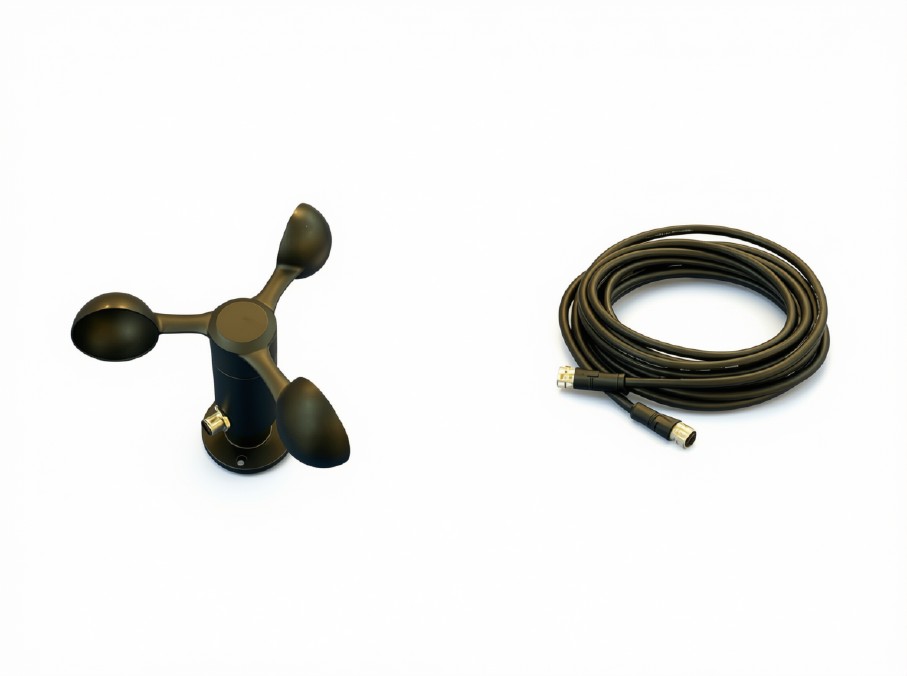

Modular Design: Expandable with optional accessories, including wind speed sensors, ambient temperature RTDs, and back-of-module RTDs.
Ease of Installation: Features a compact, easy-to-mount package, with optional cables and connectors available in various lengths. Configuration is managed via software for seamless setup.

The RC22M pairs with Mars sensors for accurate performance monitoring, eliminating soiling-related inaccuracies.
